Description

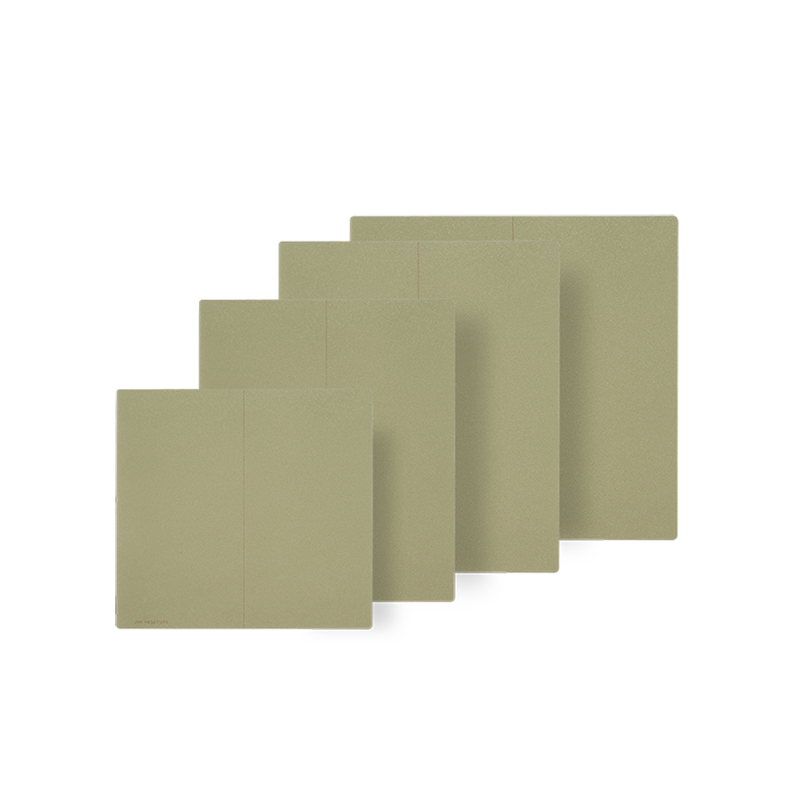

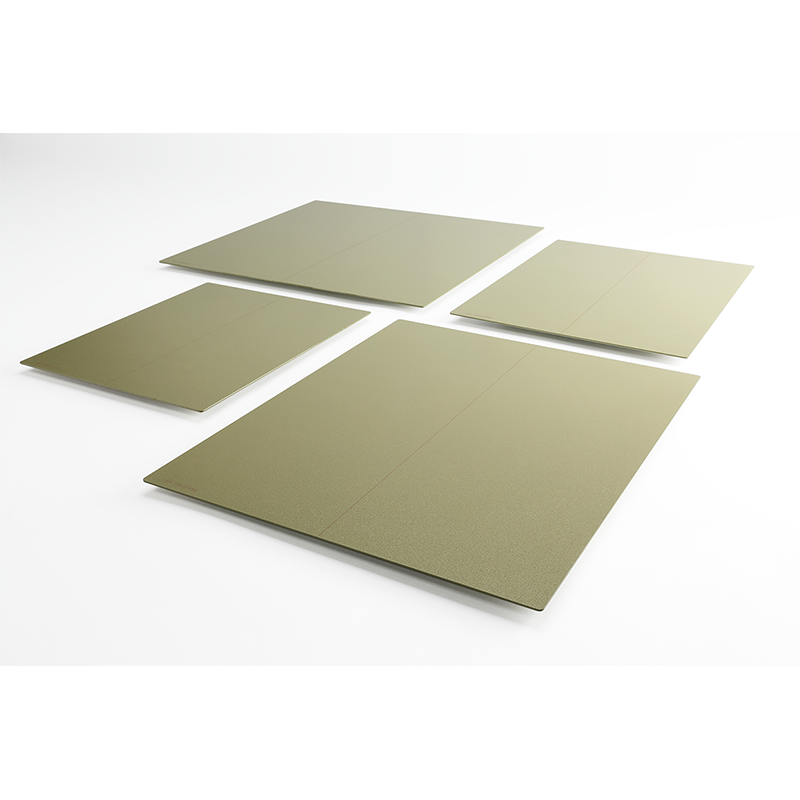

X-ray Antiscatter Grid improves the transmission rate, which reduces the Bucky Factor. This ultimately reduces patient exposure. In addition, the grids contain the purest lead to ensure superior efficiency in removing scattered radiation. Therefore, excellent quality Images are achieved using aluminium inter-spacers and lead strips, precisely milled to uniformity.

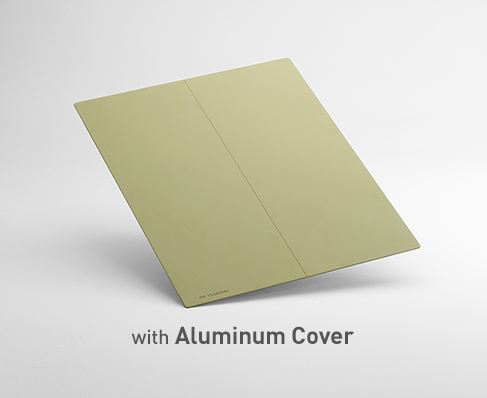

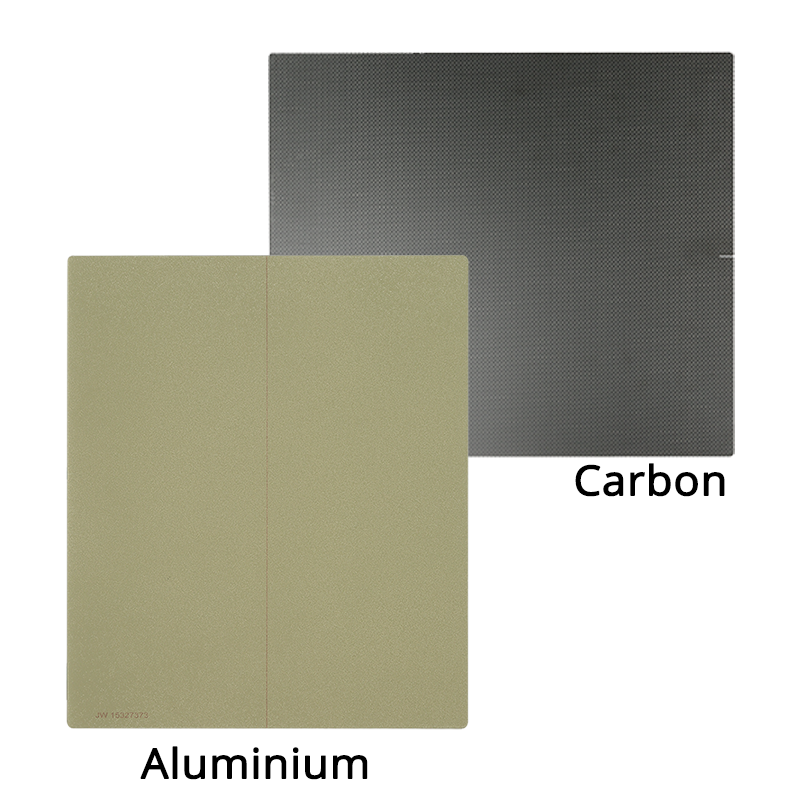

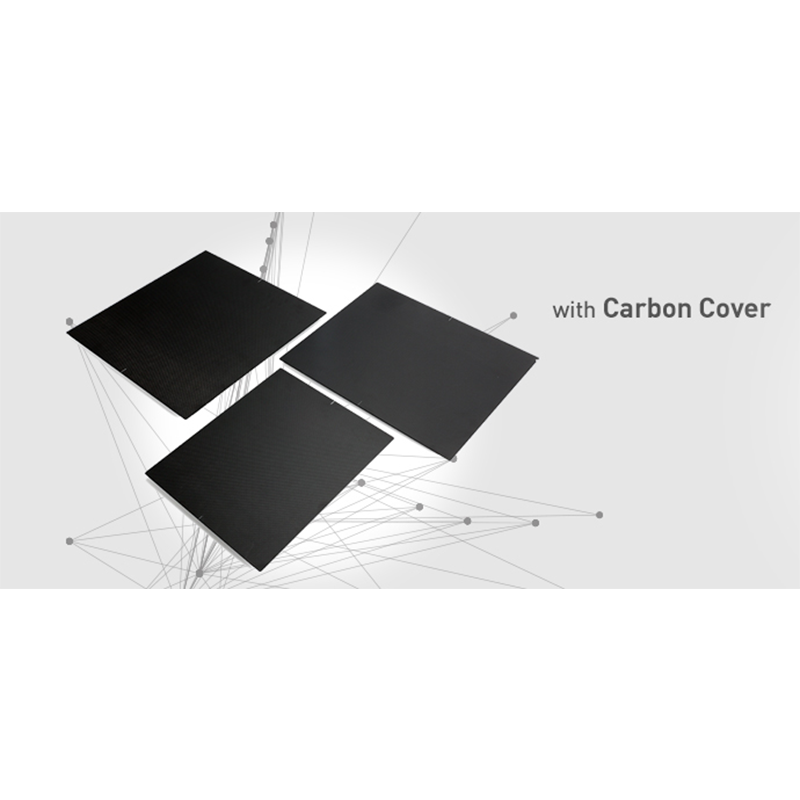

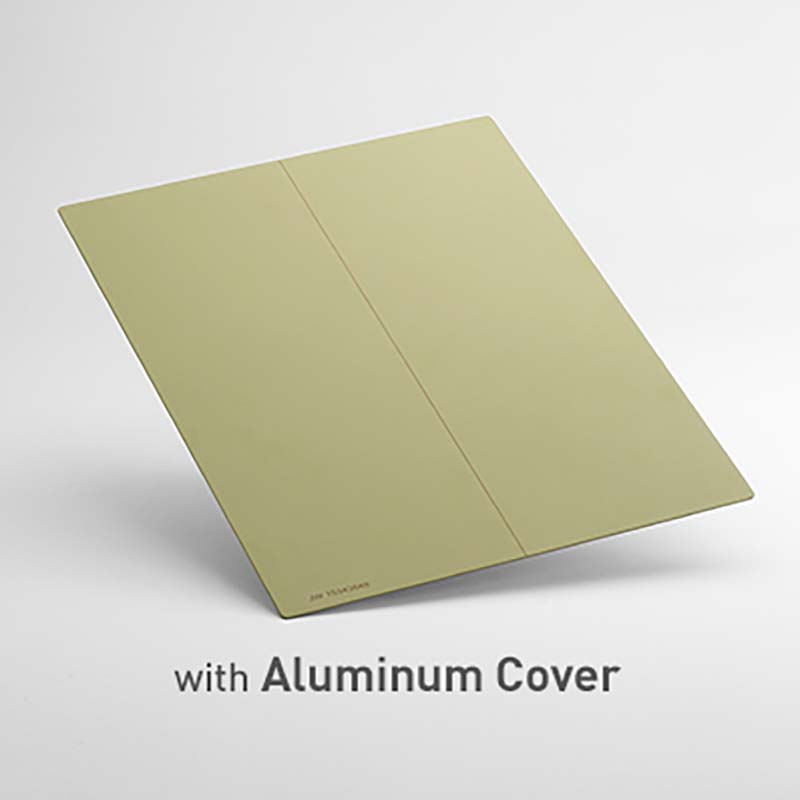

- Grid covers can be made from Aluminium (standard) or Carbon fibre (optional) material.
- Grid specifications (Focused or Parallel, Focus Distance, Lines per Cm, Ratio, Portrait or Landscape model and exact sizing) can be set by ordering.
- Grids are always produced on request (lead times 4-6 weeks). Therefore no return is possible.
Learn more here: Guideline Antiscatter Grid
Specifications
LineRate (L/Cm) | LineRate(L/Inch) | Ratio | F.D (Cm) | Grid Type |
40 | 103 | 8, 10, 12 | ||
52 | 132 | 8, 10, 12 | AAS | |
80 | 200 | 8, 10, 12 | 90 ~ 200 | AAC |
85 | 215 | 8, 10, 12 | ACS | |
90 | 230 | 8, 10, 12 | ACC |
AAS : Aluminum Interspacer, Aluminum Cover, Square | AAC : Aluminum Interspacer, Aluminum Cover, Circular
|
ACS : Aluminum Interspacer, Carbon Cover, Square | ACC: Aluminum Interspacer, Carbon Cover, Circular
|
Physical Characteristics
Division | Tp(±10%) | B(±10%) | K(±10%) | S(±10%) |
40/10 | 63 | 3.5 | 2.2 | 4.6 |
52/12 | 62 | 3.7 | 2.3 | 4.9 |
200/8 | 74 | 2.2 | 1.6 | 2.3 |
215/10 | 71 | 2.5 | 1.8 | 2.8 |
230/12 | 69 | 2.8 | 1.9 | 2.8 |
